Sawdust charcoal making machine can convert waste sawdust into an economically valuable charcoal under oxygen-free and high temperature conditions. During the sawdust carbonization process, it is heated to a temperature of 300 to 800 degrees Celsius. This causes the organic matter to decompose into gases, liquids and solids. The gases and liquids are usually collected as fuel, while the solid residue is biochar.
Sawdust charcoal can be used as a soil conditioner as it helps improve soil quality, fertility and water retention. It can also be used as an energy source or carbon sink as it can be stored for a long time and helps reduce greenhouse gas emissions.
Sawdust Pyrolysis Carbonization Project
Rich Raw Materials
Sawdust mainly comes from the cutting, grinding and processing of wood. It is commonly found in woodworking workshops, furniture manufacturing, construction sites, wood processing plants and other places.
Waste Utilization
Biomass carbonization equipment is a highly efficient and environmentally friendly equipment. It can convert waste biomass resources into high-value charcoal and has broad market prospects.
Contact Us to Get Sawdust Carbonization Solution
As a professional pyrolysis plant manufacturer, Mingjie Group can provide effective solutions to reduce environmental pollution and recycle resources.

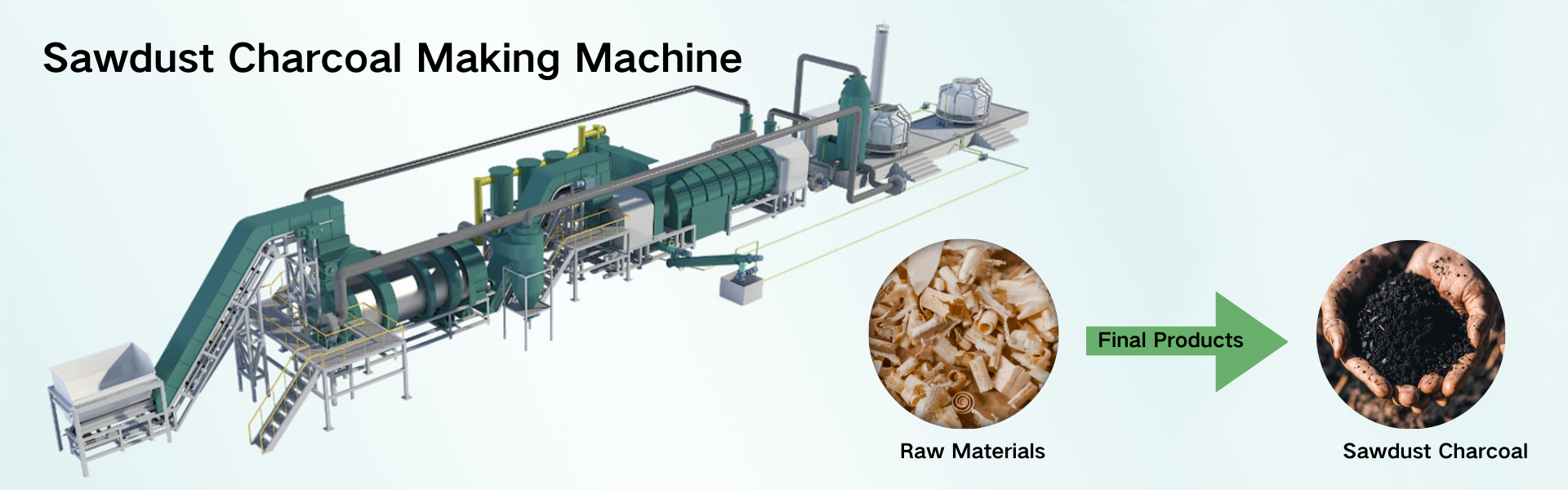

Sawdust Charcoal Making Machine for Sale

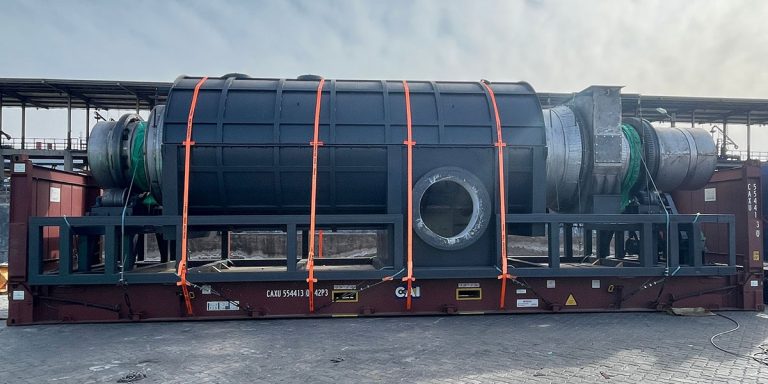

According to the different structures of the reactor, the sawdust charcoal machine is divided into single-cylinder biochar making machine and double-cylinder sawdust charcoal making machine.
The double-cylinder sawdust charcoal machine has a higher thermal utilization rate, which is more than double that of the single-layer external heating structure. The materials of the dual cylinder biomass carbonization machine do not come into contact with the flue gas, and are not polluted by hot air.
Sawdust Charcoal Machine Technical Specifications
| Model | MJT-100 | MJT-500 | MJT-1000 | MJT-2000 | MJT-3000 | MJT-5000 |
| Input Capacity | 50-100kg/h | 300-500kg/h | 800-1000kg/h | 1500-2000kg/h | 2500-3000kg/h | 4500-5000kg/h |
| Structure | Skid Mounted | Modularized | Modularized | Modularized | Modularized | Modularized |
| Reactor Type | Single Layer | Dual cylinder | ||||
| Working Method | Fully Continuous | |||||
| Reactor Material | 304 Stainless steel | |||||
| Feedstock Size | <20mm | |||||
| Feeding Moisture | <15% | |||||
| Initial Heating Oil Consumption | 20L | 30-40L | 35-50L | 50-70L | 80-90L | 120-140L |
| Land Area | L12m*W2.5m | L29m*W12m | L34m*W13m | L36m*W15m | L42m*W15m | L50m*W18m |
If you’re interested in purchasing or learning more about sawdust charcoal making machines, you can contact Mingjie Biomass Carbonization Plant Manufacturer. Let me know if you need help finding specific models!
Components of Sawdust Charcoal Making Machine
Biochar making machine generally includes feeding system, carbonization reactor, cooling system, dust removal equipment, control panel, etc.
The feeding system of fully continuous carbonization plant requires the materials to be size smaller than 20mm, and moisture smaller than 15%.
The carbonization reactor is the key component of the sawdust charcoal making machine. It is made of 304 stainless steel and has a service life of more than 5-8 years.
The sawdust charcoal machine has a water-cooled discharger, which can reduce the temperature of biochar during the unloading process.
The dust removal system can purify carbon, syngas and tar. The syngas will be transported to the combustion chamber for recycling, and the tar will be collected in the storage tank.
The biochar making machine takes PLC control which is high automatically.
Fully Continuous Sawdust Carbonization Process
Preheating and drying
Turn on the burner to preheat the sawdust charcoal machine reactor for 1-2 hours. The fuel can be diesel, liquefied petroleum gas, natural gas, etc. When the temperature reaches about 150 degrees, you can start loading.
The sawdust will be loaded into the dryer for dehumidification. The heating source is the flue gas in the combustion chamber of the carbonization furnace.
Carbonization
After the sawdust passes through the dryer, it enters the carbonization reactor. The material first enters the inner barrel for further drying, and then falls into the outer barrel to complete the pyrolysis carbonization process. After the water-cooled circulation system, the temperature of the sawdust charcoal will decrease. The generated sawdust charcoal is automatically discharged by the screw conveyor.
Collection of Syngas and Tar
The syngas and tar enters the dust collector and condenser for impurity removal and cooling. The syngas that cannot be condensed is partially recycled back to the furnace for heating, and the excess syngas enters the combustion chamber. Tar and wood vinegar are collected and stored in a storage tank.
Flue Gas Purification
The flue gas in the heating process enters the dryer and impurity remover for drying and purification. Then the flue gas enters the dust removal scrubber, passes through ceramic ring adsorption and water spray. Finally, it is cleaned by ultraviolet light and oxygen and activated carbon adsorption to remove unpleasant odors and digest CH4. This is particularly important for the generation of carbon credits.
Dust Removal
The flue gas from the combustion of syngas also passes through the flue gas condenser and then transferred to the dust removal process for cleaning.
