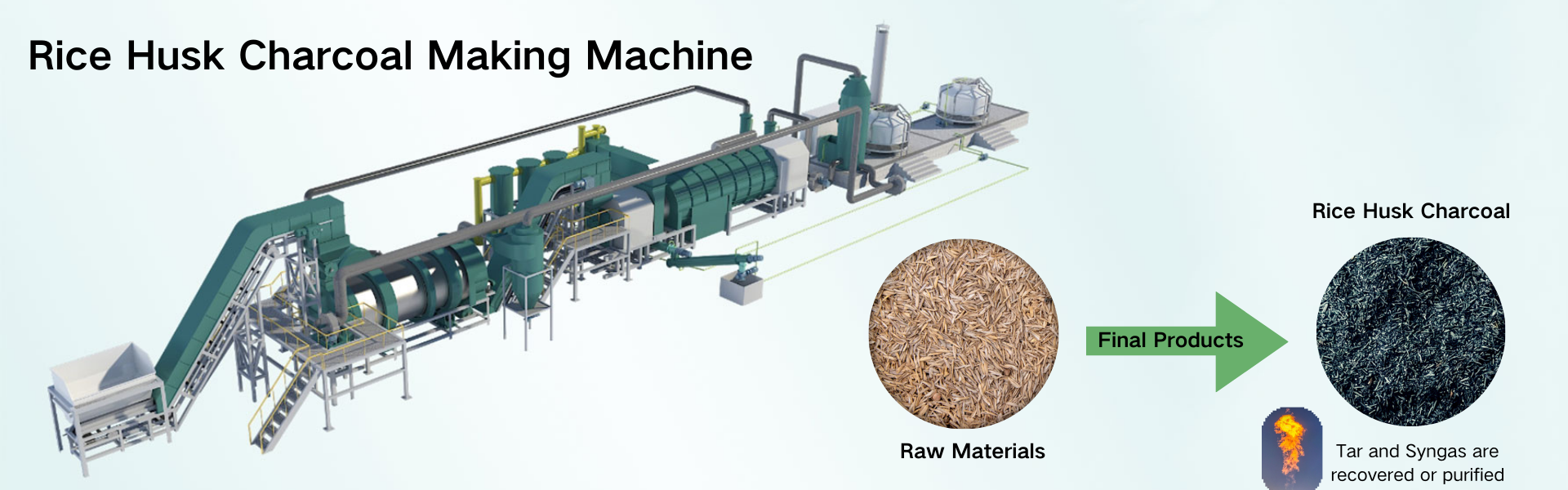

Rice Husk Charcoal Making Machine converts rice husk into charcoal and byproducts (Syngas and Tar) by pyrolysis process. Combustible gas and tar can be recovered or purified through the tail gas treatment system to reduce environmental pollution.

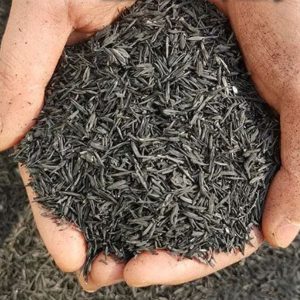

Rice husk charcoal is a stable biochar made from rice husks through high-temperature pyrolysis. It has high carbon content, high porosity and good adsorption properties. Rice husk charcoal is widely used in agriculture, environmental protection, energy and other fields.
Benefits of Rice Husk Charcoal
- Rice husk charcoal is porous and breathable, which increases oxygen supply to the roots. It enhances the water retention of sandy soil and makes clay soil soft.
- Although the fertilizer content of rice husk carbon is not much, it will promote the effectiveness of P, K, Ca and Mg, especially the dissolution of P and K.
- The pH value of rice husk charcoal is above 7, which is a good improver for acidic soil.
- Rice husk charcoal has strong adsorption capacity. It can adsorb heavy metals and organic pollutants in the soil.
Contact Us to Get Rice Husk Carbonization Solution
As a professional pyrolysis plant manufacturer, Mingjie Group can provide effective solutions to reduce environmental pollution and recycle resources.

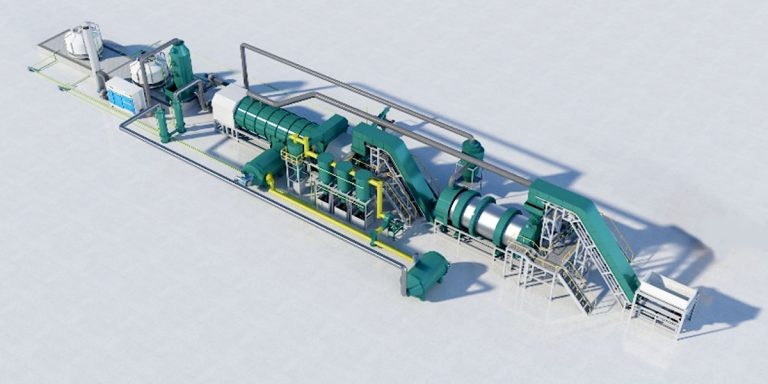

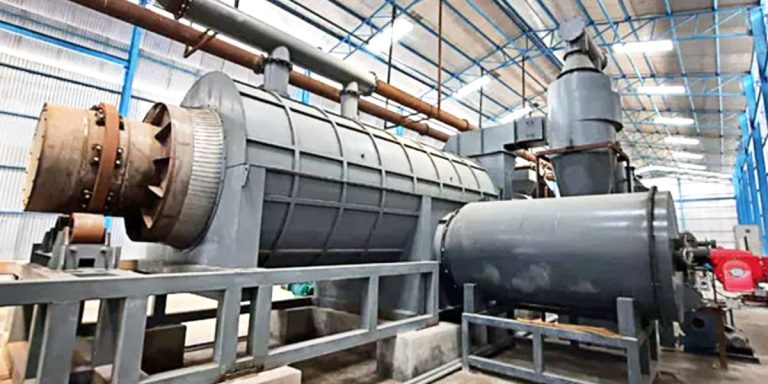

Rice Husk Charcoal Making Machine for Sale
According to the different structures of the reactor, the rice husk charcoal making machine is divided into single-cylinder biochar making machine and double-cylinder Rice husk charcoal making machine.
The double-cylinder Biochar Making Machine has a higher thermal utilization rate, which is more than double that of the single-layer external heating structure. The materials of the dual cylinder Rice Husk Charcoal Making Machine do not come into contact with the flue gas, and are not polluted by hot air.
Biochar Making Machine Technical Specifications
| Model | MJT-100 | MJT-500 | MJT-1000 | MJT-2000 | MJT-3000 | MJT-5000 |
| Input Capacity | 50-100kg/h | 300-500kg/h | 800-1000kg/h | 1500-2000kg/h | 2500-3000kg/h | 4500-5000kg/h |
| Structure | Skid Mounted | Modularized | Modularized | Modularized | Modularized | Modularized |
| Reactor Type | Single Layer | Dual cylinder | ||||
| Working Method | Fully Continuous | |||||
| Reactor Material | 304 Stainless steel | |||||
| Feedstock Size | <20mm | |||||
| Feeding Moisture | <15% | |||||
| Initial Heating Oil Consumption | 20L | 30-40L | 35-50L | 50-70L | 80-90L | 120-140L |
| Land Area | L12m*W2.5m | L29m*W12m | L34m*W13m | L36m*W15m | L42m*W15m | L50m*W18m |
If you’re interested in purchasing or learning more about rice husk charcoal machines, you can contact Mingjie Group. Let me know if you need help finding specific models!

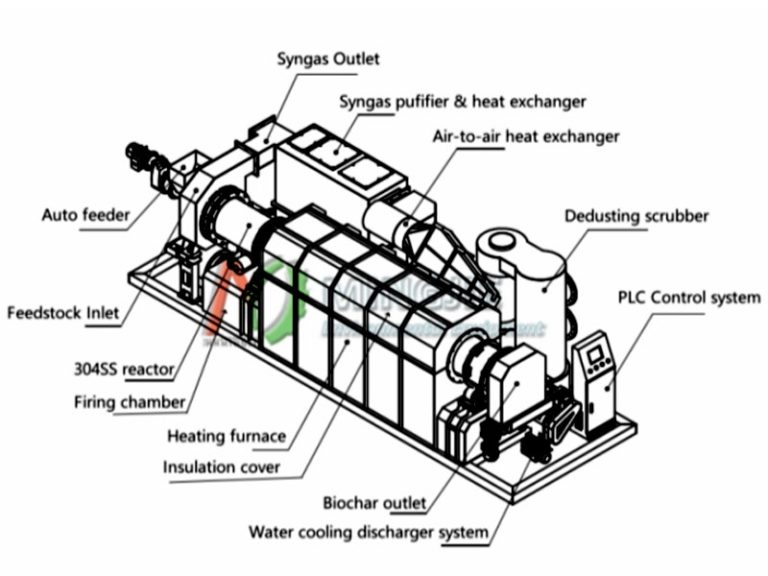

Rice Husk Charcoal Machine Components
The rice husk charcoal making machine includes feeding system, carbonization furnace, heating system, cooling system, exhaust gas treatment system, discharging system, and control system.
Feeding System
The feeding system is used to feed the rice husk raw material into the carbonization furnace. It generally includes a conveyor belt, a screw feeder or a manual feeding device.
The fully continuous carbonization system requires the materials to be size smaller than 20mm, and moisture smaller than 15%.
Carbonization Reactor
The carbonization furnace is the core equipment of the rice husk charcoal making machine. It is used to heat the rice husk under anoxic conditions, and a pyrolysis carbonization reaction occurs at a certain temperature.
The carbonization reactor is made of 304 stainless steel, the life could be more than 5-8 years.
Heating System
The heating system usually uses electric heating, gas heating or biomass combustion heating. The heating system needs to be precisely controlled to ensure the carbonization effect.
Cooling System
Generally, water cooling is used. It is used to cool the carbonized rice husk charcoal to prevent it from spontaneous combustion.
Waste Gas Treatment System
It is used to treat the combustible gas and tar generated during the carbonization process. It usually includes a condenser, a filter and a combustion device.
Discharging System
It is used to collect and transport the carbonized rice husk charcoal. It includes a discharging port, a conveyor belt or a collection box.
Control System
The automated control system is used to monitor and adjust parameters such as temperature, feeding speed, cooling time, etc. Ensure the stability and safety of the carbonization process.
How is Rice Husk Charcoal Produced by Pyrolysis Technology?
The rice husk raw material is fed into the carbonization furnace through the feeding system. Under oxygen-deficient conditions, the rice husk is heated to a certain temperature (400-600℃), at which time a pyrolysis and carbonization reaction occurs.
During the pyrolysis process, the moisture, combustible gas, and tar in the rice husk are separated. The remaining solid matter is the rice husk charcoal.
The carbonized rice husk charcoal is cooled by the cooling system and collected by the discharging system. The combustible gas and tar produced by pyrolysis can be recycled or safely discharged after treatment.
