Mingjie Group is committed to providing innovative environmental solutions and promoting sustainable development. Our mission is to reduce environmental pollution through advanced technologies and contribute to a green future. Mingjie pyrolysis machine can convert waste into energy, so that tires, rubber, plastics, biomass can be recycled.
Pyrolysis Machine for Sale
Mingjie pyrolysis plants are divided into Batch Pyrolysis Plan, Semi-continuous Pyrolysis Plant and Fully Automatic Pyrolysis Plant according to different operating methods and capacities.

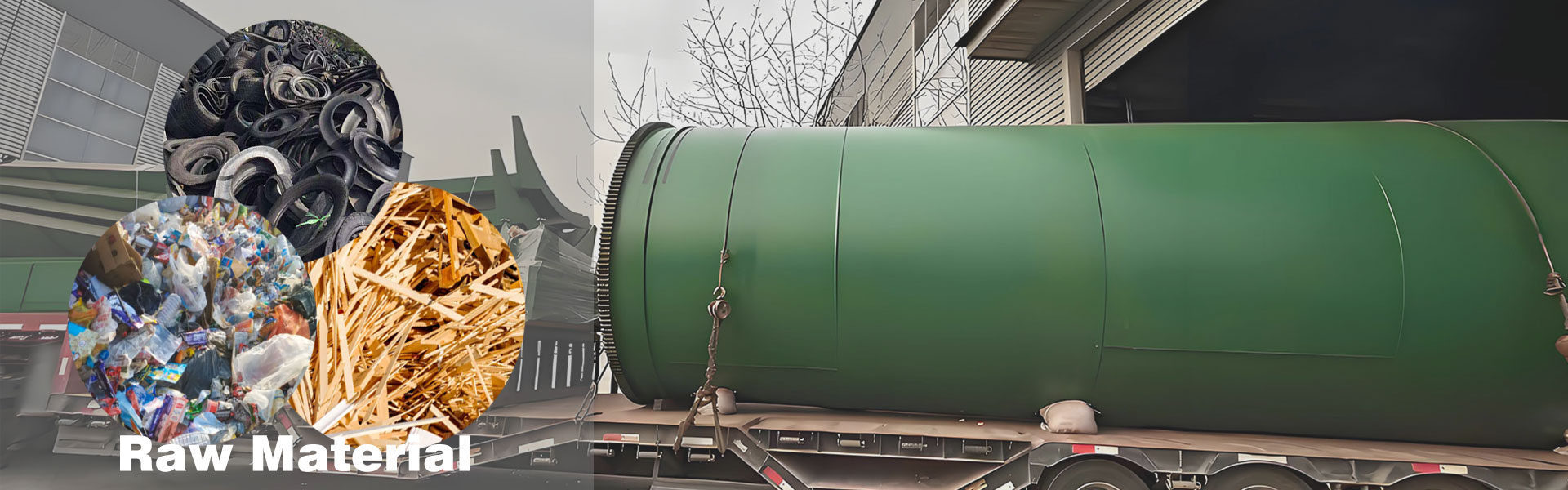

- Batch pyrolysis plant is used to process organic whole tires or plastics. It converts solid waste into pyrolysis oil, carbon black and syngas through the pyrolysis system.
- Batch pyrolysis equipment has the advantages of low investment cost and high slag discharge efficiency.
- The processing capacity of batch pyrolysis machine is 2-15T/D, which is suitable for small-scale or medium-scale production.
- The characteristic of batch plastic pyrolysis machine is batch processing of materials. After a certain amount of raw materials are pyrolyzed, the pyrolysis reactor is reloaded.
- The feed size is less than 5-8mm, and the raw materials need to be crushed into rubber powder without steel wire.
- Equipped with an automatic feeding system, it can feed at high temperature without waiting for the main furnace to cool down.
- The production is fully enclosed from feeding to slag discharge, and the operating environment is clean.
- The processing capacity is large, and 15-16T tires and 12T plastics can be processed every day.
- Equipped with a water-cooled automatic slag discharge system, no fly ash, high efficiency, and can achieve high-temperature slag discharge without waiting for too long cooling time.
- Unique flue gas treatment system.
- Feeding size shall be 5-8mm rubber granule, tyre shall be shredded and steel wire will be removed..
- Fully continous feeding and discharging in 24 hours.
- From feeding to discharging, the whole process is sealed, operation environment is clean..
- Large processing capacity, 35-40T tires and 30T plastics can be processed every day.
- Equipped with a water-cooled automatic slag discharge system, no fly ash, high efficiency. Discharing carbon black at high temperature is available, no need to wait reactor cooling.
- Special emission purification system.
Pyrolysis Plant Application
Pyrolysis equipment has been widely used in MSW treatment, which not only provides solutions for MSW treatment, but also provides solutions for energy and value-added product recovery.
In a low-oxygen environment and high temperature, pyrolysis equipment can pyrolyze municipal solid waste to produce pyrolysis oil, syngas and coke. Compared with direct incineration, pyrolysis produces less dioxins, NOx and SO2. The gas products produced by pyrolysis usually have higher energy than the syngas produced by gasification. In addition, pyrolysis oil can also be used as fuel.

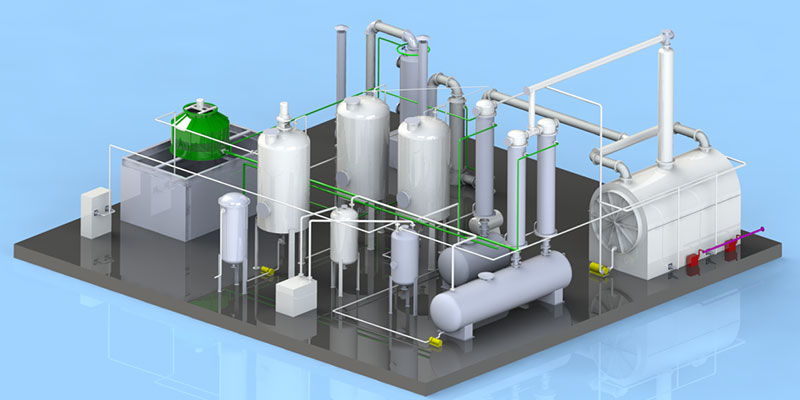

Waste Oil Distillation
Waste oil distillation equipment is an important tool for realizing waste oil resource utilization and environmental protection. The waste oil and pyrolysis oil are further purified into bright non-standard diesel or non-standard gasoline.
Waste oil distillation equipment is a kind of equipment used to regenerate waste oil (waste engine oil, pyrolysis oil, waste lubricating oil, waste fuel oil) through distillation process. Through distillation, the useful components in the waste oil can be separated and recovered, while removing impurities and pollutants.

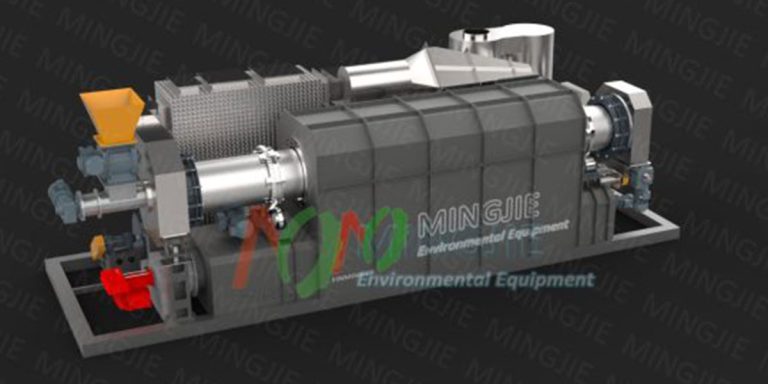

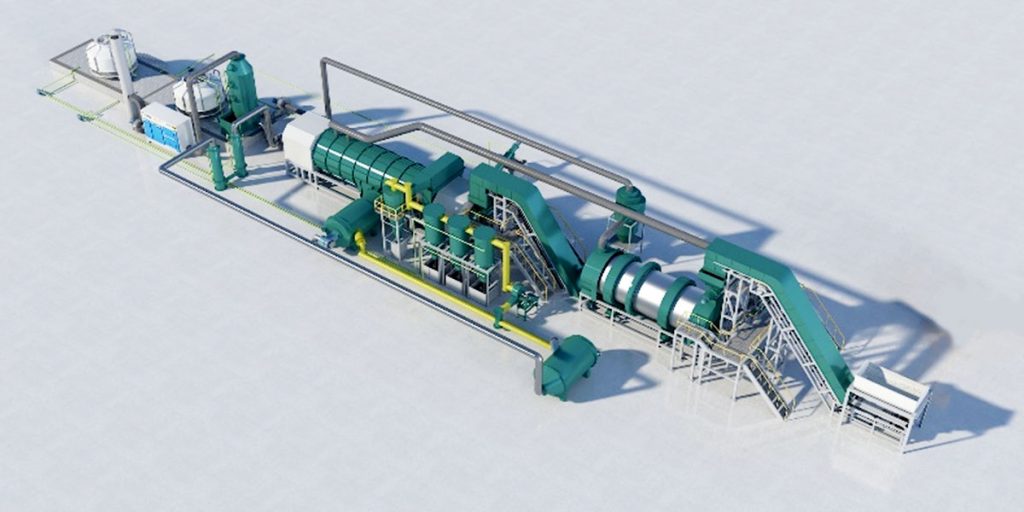

Biomass Carbonization
Biomass carbonization equipment is a kind of equipment that converts biomass materials (wood chips, straw, rice husks, coconut shells) into biochar through pyrolysis process.
- Biomass carbonization equipment can convert waste biomass into high value-added products and reduce environmental pollution caused by biomass incineration.
- The production and use of biochar can reduce greenhouse gas emissions and promote carbon circulation.
- Biochar has a wide market demand and can bring additional income to enterprises.
- The production of biochar is in line with the concept of circular economy and sustainable development.
