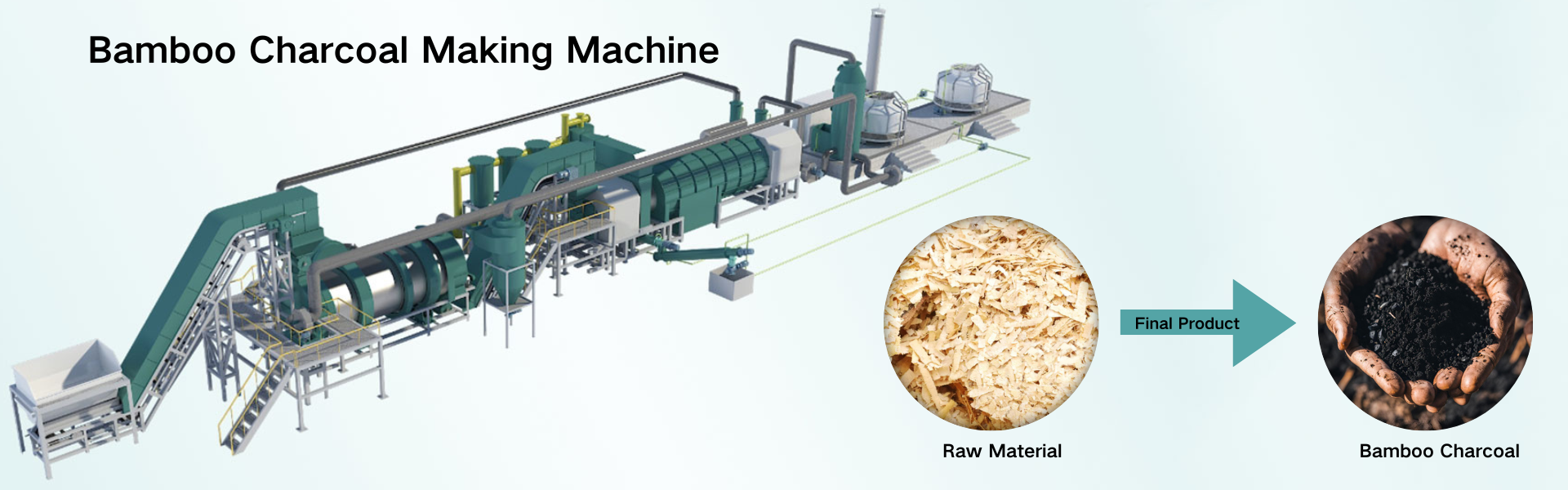

The bamboo charcoal making machine is a specially designed device that converts waste bamboo scraps into charcoal through a pyrolysis process. The content of cellulose and lignin in bamboo chips is higher than that of miscellaneous wood chips. It is a high quality carbonizing raw material.
The biomass pyrolysis equipment can convert bamboo waste into charcoal, tar and syngas in a low-oxygen environment. Bamboo charcoal is widely used for its environmental properties, such as purifying the air, absorbing moisture and improving soil.

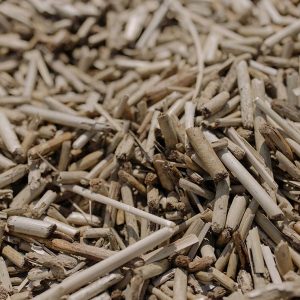

Sources of Waste Bamboo
The sources of waste bamboo are diverse, covering construction, furniture, packaging, gardening fields. Waste bamboo raw materials include discarded bamboo supports, fences, bamboo floors, bamboo chopsticks, bamboo curtains, bamboo boxes, bamboo baskets, bamboo trays, etc.
These waste bamboos are converted into economically profitable biochar through bamboo charcoal making machines. This can reduce resource waste, reduce environmental pollution, and have important environmental and economic benefits.

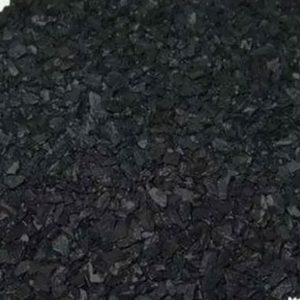

Benefits of Bamboo Charcoal
- Bamboo charcoal can be used as raw material for mosquito repellent incense, barbecue carbon and activated carbon.
- Bamboo charcoal has a porous structure that effectively adsorbs harmful substances like volatile organic compounds (VOCs), formaldehyde, and other toxins from the air.
- Bamboo Charcoal ash can be used as an agricultural fertilizer to improve soil quality and retain moisture.
- Bamboo charcoal is used in soaps and skincare products for its ability to draw out impurities and toxins from the skin.
- Bamboo charcoal can be used in ink, paint, rubber and other industries.
If you’re interested in purchasing or learning more about Bamboo Charcoal Making Machines, you can contact Mingjie Group. Contact us for a free quote!
Bamboo Charcoal Making Machine for Sale
Portable Carbonization Equipment
Portable Small Carbonization Equipment: skid mounted design, continuous operation, generally used as a verification machine.
The skid-mounted carbonization machine is suitable for the treatment of 5-20mm dry bamboo chips (water content less than 15%). Such as bamboo shavings, rice husks, coffee shells, nut shells, wood chips, palm shells and so on.

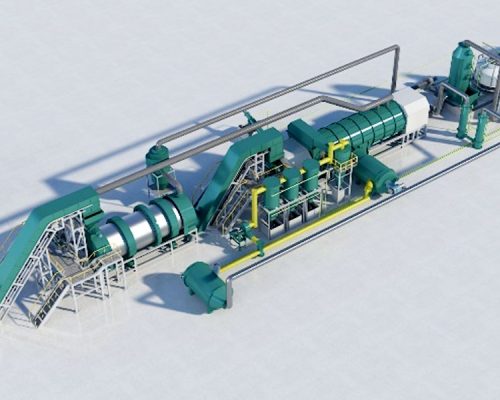

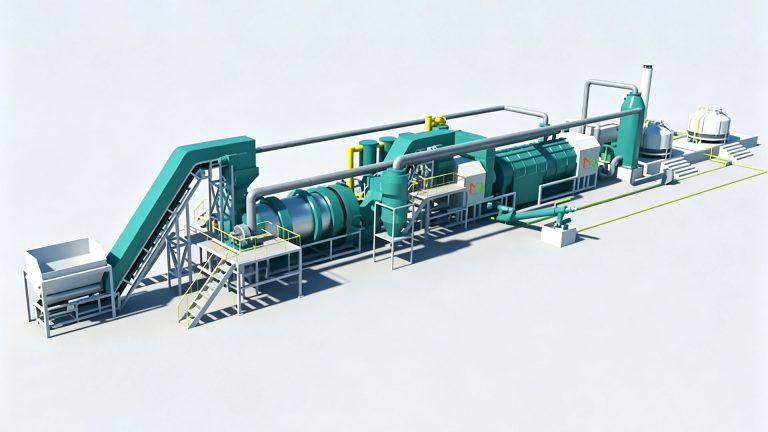

Fully Automatic Biomass Pyrolysis Equipment
Fully Automatic Wood Charcoal Manufacturing Machine: It needs to be continuously operated with shredders and dryers, suitable for large-scale industrial use. We provide a special crushing system and drying system for wood charcoal machine.
Fully automatic biomass pyrolysis equipment is suitable for biomass materials with a size greater than 20mm and a moisture content between 15% and 65%, such as wood, straw, coconut shell, bamboo, etc.
Fully automatic bamboo charcoal making machine has high yield, fast charring speed and continuous production. It can enter raw materials and exit charcoal at the same time, which can meet the carbonization needs of 30-50 tons of bamboo chips a day.
Biochar Making Machine Technical Specifications
| Model | MJT-100 | MJT-500 | MJT-1000 | MJT-2000 | MJT-3000 | MJT-5000 |
| Input Capacity | 50-100kg/h | 300-500kg/h | 800-1000kg/h | 1500-2000kg/h | 2500-3000kg/h | 4500-5000kg/h |
| Structure | Skid Mounted | Modularized | Modularized | Modularized | Modularized | Modularized |
| Reactor Type | Single Layer | Dual cylinder | ||||
| Working Method | Fully Continuous | |||||
| Reactor Material | 304 Stainless steel | |||||
| Feedstock Size | <20mm | |||||
| Feeding Moisture | <15% | |||||
| Initial Heating Oil Consumption | 20L | 30-40L | 35-50L | 50-70L | 80-90L | 120-140L |
| Land Area | L12m*W2.5m | L29m*W12m | L34m*W13m | L36m*W15m | L42m*W15m | L50m*W18m |
If you’re interested in purchasing or learning more about Bamboo Charcoal Making Machines, you can contact Mingjie Group. Let me know if you need help finding specific models!

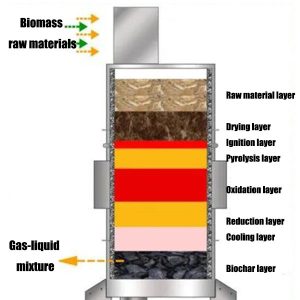

How Bamboo Charcoal Making Machine Works
- Feeding: Bamboo is fed into the bamboo charcoal making machine in raw form or in pre-treated chips.
- Drying: The bamboo is dried to reduce moisture content, ensuring efficient pyrolysis.
- Pyrolysis: The dried bamboo is heated in a high temperature oxygen-free chamber (usually 400-800°C). This bamboo charcoal production process breaks the bamboo down into charcoal and other products.
- Cooling and Collection: The charcoal is cooled and collected, while the gas and tar are separated and can be reused as fuel or used for other purposes.
